Overview

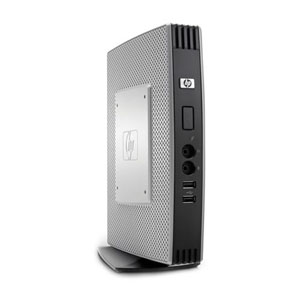

The HP t5740 Flexible Series Thin Client is designed with the latest technologies to deliver a true PC experience for Citrix, Windows and VDI connectivity, plus legacy host support, multimedia and business class web browsing.



Features



Leading-edge technology

The Intel Atom N280 processor and GL40 chipset, DDR3 RAM, and high-resolution, wide-screen monitor support yields impressive performance and dependability.



Windows® Embedded Standard 2009

Users enjoy a familiar computing experience, with the latest browser, media player, and HP value-added software; and support for local applications.



Industry-leading flexibility

Extend system life by upgrading memory, adding a secondary solid state flash drive, or adding PCIe X4 cards with the optional Expansion Module (sold separately).



Exceptionally simple experiences

Quickly deploy simple, familiar and more reliable computing experiences with the industry’s most comprehensive suite of management tools. HP RDP Enhancements software enables a rich client virtualization experience.



Specifications
Operating system - Windows® Embedded Standard 2009
Processor - Intel Atom N280
Browser - Microsoft® IE 7.0
Form Factor - Standard Thin Client
Memory - 1 GB DDR3 SDRAM
Flash memory - 2 GB Flash RAM
I/O Ports –
External:
8 USB 2.0 (2 front, 4 rear, 2 in secure compartment)
1 serial RS232
2 PS/2
Rear:
4 USB 2.0
1 VGA-in
1 DisplayPort
2 PS/2
1 RJ-45
1 serial
Protocols - Windows® Embedded Standard 2009
Citrix ICA 11.0 (XenApp Plugin for Hosted Apps 11.0)
Microsoft RDP 6.1
Microsoft Internet Explorer 7
Windows Media Player 11
HP TeemTalk Terminal Emulator 7
Audio - 1/8-inch mini microphone; Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample rate; RealTek ALC 272 audio
Slots - 1 PCIe x4 / PCI Expansion Module (optional)
Graphics - Intel GL40 graphics with support for two high-resolution monitors up to 2048 x 1536, or up to 32 bit color depth*. Output through VGA and DisplayPort connectors. Optional adapters available for DisplayPort to VGA or DVI-D connections.
Input devices - USB or PS/2 mouse
Keyboard - USB or PS/2 keyboard
Network interface - 10/100/1000 Gigabit Ethernet, some models additionally have integrated 802.11 a/b/g/n Wi-Fi and antenna
Dimensions (w x d x h) - 1.73 x 8.74 x 10.39 in (4.4 x 22.2 x 26.67 cm)
Weight - 3.48 lb (1.58 kg)
Power supply - Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down, surge-tolerant, Energy Star 2.0 compliant 65-watt power supply
Certifications & Compliance - ENERGY STAR® Qualified; UL 1950; CSA 950; TUV-GS (EN60 950); FCC Class B; CE Mark; EN55022B; VCCI
